3D & Robot Control: Supporting Next-Generation Robot Development
Next-Generation Robot Development Support Solutions
SANEI HYTECHS offers a robot development solution that seamlessly connects the virtual space with the physical machine, utilizing a combination of 3D data technology and robot control software. We support robot development with an extensive range of solutions, including: field robot simulation, 3D spatial generation, ROS 2 development, Digital Twin, HILS (Hardware in the Loop Simulation), and remote operation.
We make the development of field robots—which is often high-cost and high-risk—more efficient by leveraging 3D CG and software technology to provide a safe and practical testing environment.
We make the development of field robots—which is often high-cost and high-risk—more efficient by leveraging 3D CG and software technology to provide a safe and practical testing environment.
Challenges in Field Robot Development and Our Strengths
Developing field robots for outdoor use—such as autonomous drones and automated harvesters, presents numerous challenges on the path to practical implementation.
High Cost and High Risk
Actual hardware testing and field trials carry high risks of damage to equipment and facilities, as well as potential hazards to operators and the environment from unexpected accidents. Consequently, this results in high costs for insurance, repair expenses, and more.
By utilizing our simulation technology within a virtual space, we can significantly reduce both costs and risks, allowing development to proceed safely and efficiently.
Complex Verification Environments
Outdoor environments involve complex interplays of weather, terrain, obstacles, and lighting conditions, making it difficult to verify robot behavior accurately according to real-world conditions.
Our advanced 3D data generation technology faithfully reproduces complex outdoor environments. Developers can quickly evaluate robot behavior under various conditions in the virtual environment, efficiently leading to algorithm improvements.
Technical Barriers to Practical Implementation
Even if an algorithm performs perfectly in simulation, it may encounter unexpected issues and issues when implemented on the actual machine, presenting a major hurdle to practical deployment.
We provide technology that seamlessly links 3D CG (the virtual space) with the physical machine. Since results verified in the virtual environment can be reflected safely and accurately onto the actual machine, the time required for commercialization can be significantly shortened.
Key Solutions
Outdoor Environment Verification using Robot 3D Simulation
Our proprietary 3D simulation technology allows for the pre-evaluation of robot behavior, recognition performance, and path planning within a virtual space that integrates terrain data and sensor information.
We are developing 3D simulation technology that accurately reproduces complex and highly variable outdoor environments, thereby supporting robot operation verification and algorithm development. It is possible to evaluate the robot's behavior, recognition performance, path planning, and more in advance on a virtual space integrating terrain data and sensor information. This significantly reduces the costs and risks associated with physical machine experiments, leading to increased development efficiency and enhanced safety.
We are developing 3D simulation technology that accurately reproduces complex and highly variable outdoor environments, thereby supporting robot operation verification and algorithm development. It is possible to evaluate the robot's behavior, recognition performance, path planning, and more in advance on a virtual space integrating terrain data and sensor information. This significantly reduces the costs and risks associated with physical machine experiments, leading to increased development efficiency and enhanced safety.
Our Proprietary Software: "Robot Scenario Simulator"
Our self-developed "Robot Scenario Simulator" provides an environment where autonomous robot operation scenarios in outdoor spaces can be easily tested using 3D simulation. It facilitates the sharing of field robot operation concepts not only among developers and researchers but also among local government officials considering robot utilization. We also accept contract development and educational content creation based on our simulator technology. By pre-evaluating robot behavior, recognition performance, and path planning in a virtual space that integrates terrain data and sensor information, we achieve greater development efficiency and improved safety.

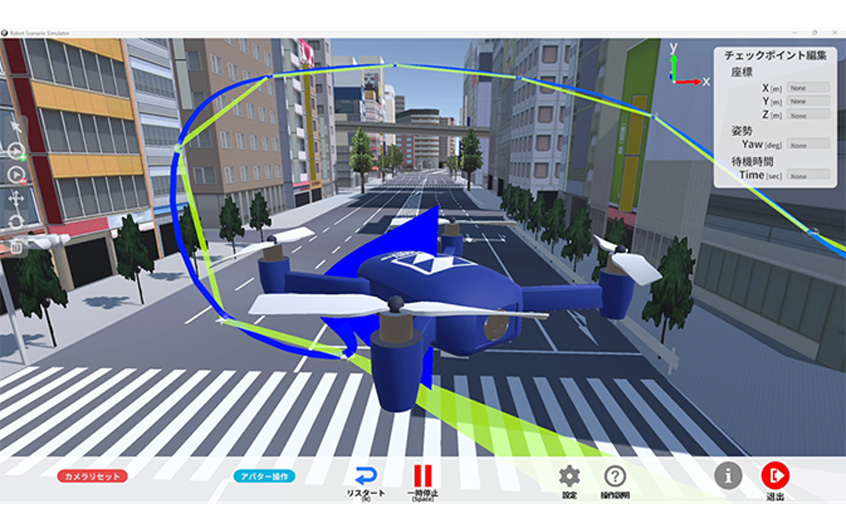

Drones

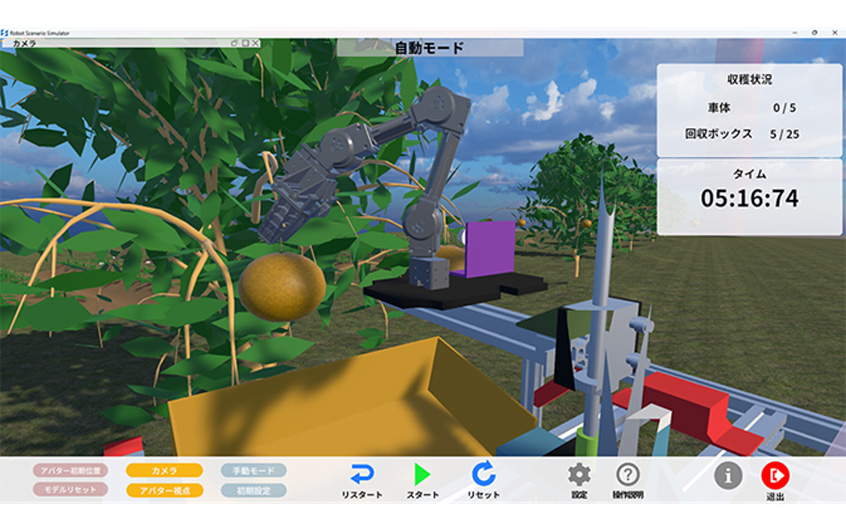

Harvesting Robots

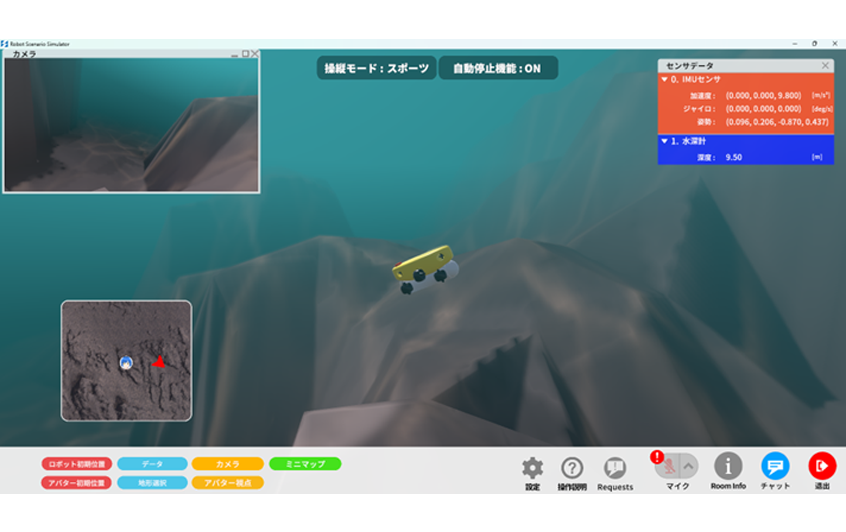

Underwater Drones
Creating Outdoor Environments and Spatial Analysis using Large-Scale 3D Data
We efficiently construct 3D virtual spaces (Digital Twins) that faithfully reproduce the real world.
- Large-Scale 3D Data X AI X Robot Control
- Streamlining simulation and spatial analysis within the virtual space
- Shortening development time and improving accuracy
Utilization of Large-Scale 3D Data
We possess the technology to effectively process large-scale 3D data, such as point clouds.
By utilizing open data, including projects like VIRTUAL SHIZUOKA and the PLATEAU project, we efficiently create 3D CG representations of vast outdoor spaces.
By utilizing open data, including projects like VIRTUAL SHIZUOKA and the PLATEAU project, we efficiently create 3D CG representations of vast outdoor spaces.
3D Spatial Analysis
Our spatial analysis technology allows for the efficient extraction of optimal locations for robot demonstration experiments, such as ideal areas and landmark positions.
We provide technology for analyzing the created virtual space (e.g., searching for areas suitable for robot demonstration tests, extracting viewpoints where target landmarks are clearly visible), and we support problem-solving through the combination of mathematical and robot control algorithms.
We provide technology for analyzing the created virtual space (e.g., searching for areas suitable for robot demonstration tests, extracting viewpoints where target landmarks are clearly visible), and we support problem-solving through the combination of mathematical and robot control algorithms.
3D Virtual Space (3D CG) and Physical Machine Integration Technology
We support safe development by providing technology that reflects algorithms verified in the 3D virtual space onto the actual machine, thereby minimizing failures and accidents during robot testing.
Safe Program Verification using HILS
We interconnect the control computer inside the physical robot with 3D CG.
By running tests with the robot in the virtual space before installing the final control program onto the actual machine, developers can discover flaws that could lead to failures or accidents in advance.
By running tests with the robot in the virtual space before installing the final control program onto the actual machine, developers can discover flaws that could lead to failures or accidents in advance.

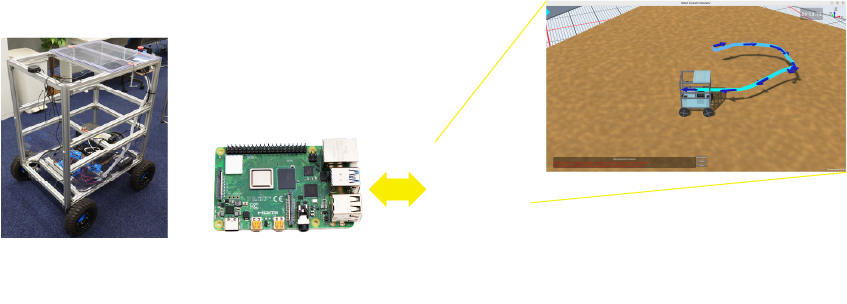

Conceptual Diagram (System Configuration) of HILS
Utilizing Remote Operation Technology and Real-Time DigitalTwin
We strongly support the final commercialization phase by combining real-time digital twin technology for robots with remote operation technology via the internet.
Conceptual Diagram (System Configuration) of Remote Operation
Robot Software Implementation (ROS 2 Development)
We accelerate cutting-edge robot development by leveraging our extensive expertise in ROS 2 (Robot Operating System 2), combined with AI and sensing technologies.
ROS 2 x AI x Sensing
We effectively develop precise robot software by combining our ROS 2 expertise, cultivated through the development of the Robot Scenario Simulator and client projects, with AI algorithm development, software implementation on edge devices, and sensing technology that includes semiconductor knowledge.
Scope of Service
We offer comprehensive support, ranging from algorithm development in a simulation environment to the implementation of embedded software for deployment on the actual machine.
Custom Development and Consulting
We offer flexible custom development and technical consultations to turn our clients' requests and ideas into reality. We provide challenge-solving robot development support by combining advanced technologies such as 3D CG, AI, IT, and ROS.
Custom Development
We custom-develop solutions such as 3D Simulators, VR Simulators, Metaverse Systems, and 3D data visualization applications by combining our proprietary technologies, including 3D CG, AI, IT, and ROS 2.
Consulting
We also offer various technical consulting services and free technical advice.
Service Details and Proposal Flow
We flexibly propose services using the diverse contract formats below, tailored to meet the specific needs and situation of each client.
01Inquiry
02Meeting (Free Technical Consultation)
03Service Proposal
- Software License Sales
- Software IP Sales
- Contract Development / Consulting
- Joint Development / Collaboration
Service Details
| Service Details | Overview |
|---|---|
| Software License Sales | We provide the "Robot Scenario Simulator" and related software under a license format tailored to your specific requirements. |
| Software IP Sales | We offer software Intellectual Property (IP) developed by our company, such as remote operation technology. |
| Contract Development / Consulting | We undertake the development of unique systems utilizing our technology, including 3D CG software and AI for 3D spaces. |
| Joint Development / Collaboration | We also accommodate joint product and technology development projects. |
Software License Sales
We provide the "Robot Scenario Simulator" and related software under a license format tailored to meet your specific requirements.
Flow Until Contract
-
01
Meeting (Detailed explanation of the licensing model, etc.) -
02
Quotation -
03
Contract -
04
Provision of the software
Software IP Sales
We provide software IP such as remote operation technology.
Flow Until Contract
-
01
Meeting (Detailed explanation of IP) -
02
Consultation on Contract Details (Adjusting contract type and amount via email or meeting) -
03
Quotation -
04
Contract -
05
Provision of IP
Contract Development / Consulting
We undertake the development of unique 3D CG software, AI for 3D spaces, and other systems using technology held by our company.
Flow Until Contract
-
01
Meeting (Consultation on business content) -
02
Quotation -
03
Contract -
04
Commencement of Business
Development Flow
01Requirements Definition
We clarify the functions and specifications to be implemented based on the customer's requests.
02Design
We carry out the necessary design for development, such as 3D CG and AI for 3D spaces.
03Development / Creation
Based on the design, we develop and create 3D CG software, AI for 3D spaces, etc.
04Verification
We implement operation check and quality verification for individual software and the entire system.
05Delivery
We deliver in a data format matching the customer's request.
Frequently Asked Questions (FAQ)
I do not have 3D data, is it still possible to make a request?
Yes, it is possible.
We will propose solutions tailored to your requests, such as environment construction utilizing open data like PLATEAU and VIRTUAL SHIZUOKA.
We will propose solutions tailored to your requests, such as environment construction utilizing open data like PLATEAU and VIRTUAL SHIZUOKA.
Is a simulator trial possible?
Yes, it is possible.
Please contact us for details.
Please contact us for details.
Can I make a request even if I have no experience with ROS 2?
Yes, there is no problem.
Based on our knowledge of ROS 2 development, we will provide broad support ranging from requirements definition to implementation on the actual machine.
Based on our knowledge of ROS 2 development, we will provide broad support ranging from requirements definition to implementation on the actual machine.
