SARADC / OS-SARADC IP development
Development of low-power, small-area ADC IP SARADC and OS-SARADC
We are developing low-power, small-area SARADC IP for low-power sensors.
SARADC IP has 12-bit resolution and a conversion speed of 10Msps, and the power consumption including the VREF buffer is kept very low. It Area is also very compact.
OS-SARADC IP achieves 16-bit resolution by oversampling SARADC. The resolution is increased by reducing the conversion speed to 100Ksps. Like SARADC IP, it consumes very low power and has a compact area.
Compared to our conventional SARADC IP, it has significantly reduced power and area.
SARADC IP has 12-bit resolution and a conversion speed of 10Msps, and the power consumption including the VREF buffer is kept very low. It Area is also very compact.
OS-SARADC IP achieves 16-bit resolution by oversampling SARADC. The resolution is increased by reducing the conversion speed to 100Ksps. Like SARADC IP, it consumes very low power and has a compact area.
Compared to our conventional SARADC IP, it has significantly reduced power and area.
Characteristics table of SARADC and OS-SARADC
The characteristics of the SARADC and OS-SARADC IP developed by we are as follows.
SARADC | OS-SARADC | |
---|---|---|
Development year | 2023 | 2023 |
Process (nm) | TSMC 180 | TSMC 180 |
Power supply voltage (V) | 1.8 | 1.8 |
Resolution (bit) | 12 | 16 |
Conversion speed (sps) | 10M | 100K |
SNR (dBFS) | 69 | 79.5 |
VREF buffer Built-in or not | Built-in | Built-in |
Status | Evaluated | Evaluated |
Other in-house developed ADC IP characteristics
We have developed highly original ADC technology and provide it to our customers, taking advantage of our many years of research and development and extensive experience.Detailed characteristics of other in-house developed ADC IPs can be viewed at the link below.
Features of SARADC IP/OS-SARADC IP
High power efficiency
- Low power consumption design including VREF buffer
- High power efficiency due to unique circuit design
Built-in VREF buffer
- No need for external VREF circuit
Clockless
- Only one timing signal input (When operating at 10Msps, input 10MHz as timing signal)
Dynamic operation
- Reduce power consumption by lowering conversion speed.

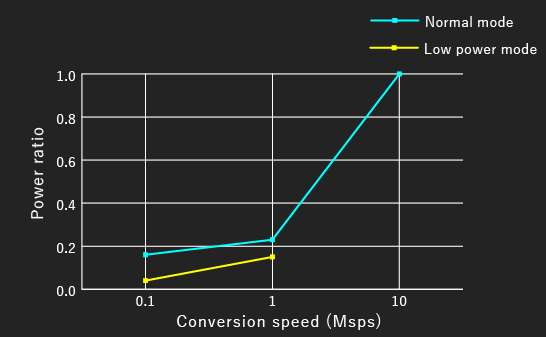

Figure 1. Conversion speed and power efficiency
Small Area
- Compact layout design
Input switching function
- Can switch multiple inputs and input them to the ADC.
Evaluation results of SARADC IP/OS-SARADC IP
Thorough evaluation that supports high quality
We are evaluating the performance of SARADC IP/OS-SARADC IP using our own evaluation board.
The evaluation results are currently being prepared.
The evaluation results are currently being prepared.
Provision of in-house developed ADC IP and process porting
Our SARADC and OS-SARADC IP can be provided for various applications. We also provide custom design services based on the process and specifications according to your needs. If you are looking for an ADC IP solution, please feel free to contact us. We also provide buffer IP for input capacitance drive that supports both SARADC IP and OS-SARADC IP.
Provision and support of evaluation environment
We not only design semiconductor circuits, but also integrate IC prototyping, development of evaluation environments, and evaluation. The following issues are particularly important for analog circuits.
- The effects of semiconductor element mismatch
- Changes in power supply and temperature
- The effects of power supply and circuit board noise
- The effects of parasitic resistance and parasitic capacitance
-
